Date: Sat, 23 May 2015 08:49:40 -0700
Reply-To: Neil N <musomuso@GMAIL.COM>
Sender: Vanagon Mailing List <vanagon@gerry.vanagon.com>
From: Neil N <musomuso@GMAIL.COM>
Subject: Re: Followup to fridge troubles--success!
In-Reply-To: <CAFnDXk14KiS=EX07Pw9cz+1ZRRWTbEgFWDSFh_EwB43Joh33Nw@mail.gmail.com>
Content-Type: text/plain; charset=UTF-8
Right on.
Those burner boxes sure get dirty.
On one of my Dometics, not only was the box dirty,
the drain plug was *packed* with rust. image:
http://tinyurl.com/l3gfdoz
I never did get my Dometic to stay lit while driving in *heavy* cross winds
but then I suspect the thermocouple was very marginal.
At low flame ("pilot"), that part likely didn't see enough heat.
It appeared to be burned back too short. (long term wear)
http://tinyurl.com/mh28gjq
In hindsight, adding RTV to the stock seal at body likely wasn't needed

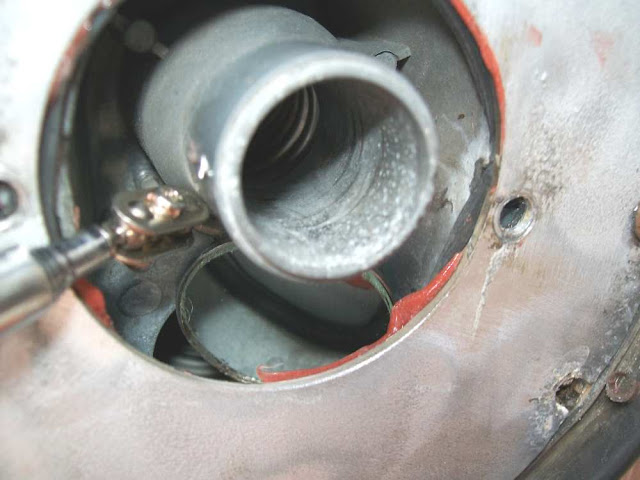

but this image: http://tinyurl.com/n76os7f shows a bit of how the
intake/exhaust
manifold should seal. I think there's a real tendency to misalign that part
to the
vehicle body (hence seal) when removing, installing the fridge.
Neil.
On Fri, May 22, 2015 at 3:09 PM, Jim Felder <jim.felder@gmail.com> wrote:
> I posted during the week that my fridge would no longer operate on gas.
> Stuart described making a manometer, and thankfully the regulator was
> easily ruled out with a few bucks worth of clear tubing. I knew I had a
> noisy fan, so I ordered the beefy GoWesty replacement. It looks very good
> and was easy to install.
>
> I pulled the unit yesterday afternoon and cleaned the combustion chamber.
> Something flew out of the flue pipe when I put compressed air to them but I
> was not quick enough to see just what it was, I could hear it hit the
> combustion chamber pan. Maybe a leaf. You may recall that I had been in 70+
> mph winds right before I began having problems.
>
> I opened the combustion chamber and it had a good bit of black grit inside
> the burner itself, and some around the chamber. Cleaned it all up and
> reinstalled the unit today.
>
> It now lights up no problem, and where it was doing good to pull a 20-25
> degree difference from ambient, it was 86 today and the fridge temps
> hovered just over 40 degrees F.
>
> Very happy! Thanks to Stuart, Dennis and David B.
>
> Jim
>
--
